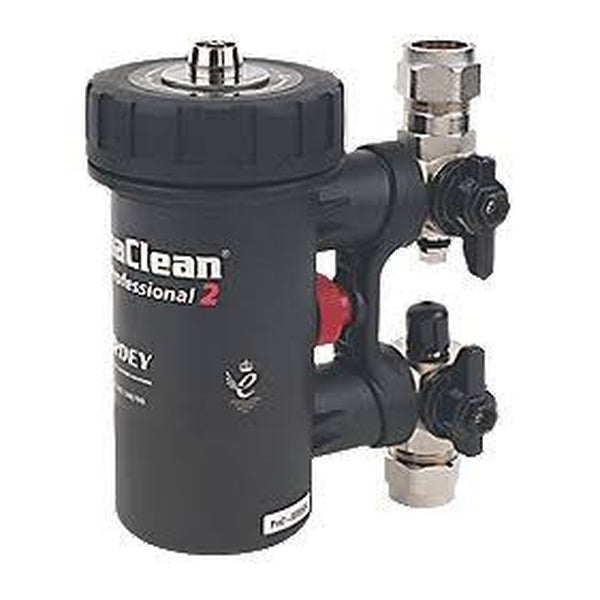

Adey MagnaClean Professional 2 magnetic filter 22mm

Adey Magnaclean Professional 2 22mm is a magnetic filter that helps protect heating systems by removing virtually 100% of the damaging suspended black iron oxide sludge that builds up in all central heating systems.

The in-line, push-fit, filter not only extends the operational life of the central heating system, it reduces maintenance and heating energy bills as well as reducing carbon emissions. The Adey Magnaclean Professional 2 always delivers the best protection, so your heating can operate at peak performance levels.

Installer benefits
• Captures magnetic and non-magnetic debris
• Ultra-thin sheath enhances magnetite capture
• In-line installation can be completed in just two minutes
• 360° rotational valves providing multiple installation options
• Bi-directional flow means either port can be an inlet, increasing flexibility
• Removable sheath makes servicing quick and easy
• Chemicals can be easily dosed directly into the canister
• Low-profile drain valve designed for easier servicing
• Rapid-fit connectors for faster servicing
Canister and Lid


Material: Glass reinforced nylon
• Fluid capacity: 550 ml
• Inlet diameter: 22 mm at valve
• Outlet diameter: 22 mm at valve
• Thread: Pressure thread
• Flow configuration: Bi-directional
• Main lid seal: EPDM
• Valve to canister: EPDM
• Magnet

Housing: Stainless steel
• Length: 150 mm
• Diameter: 19 mm
• Drain Port

Drain plug material: Nickel plated brass
• Drain plug thread: M8
• Seals: EPDM
• Seal Valves

Body material: Nickel plated brass
• Seal material: Long life PTFE ball seals
• O ring material: EPDM 70 seals
• Valve inlet/outlet: 22 mm

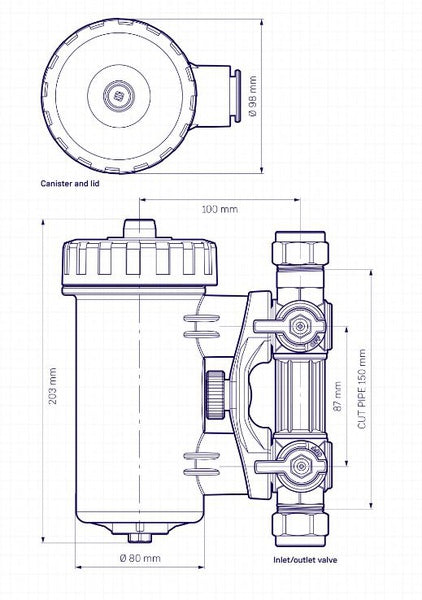

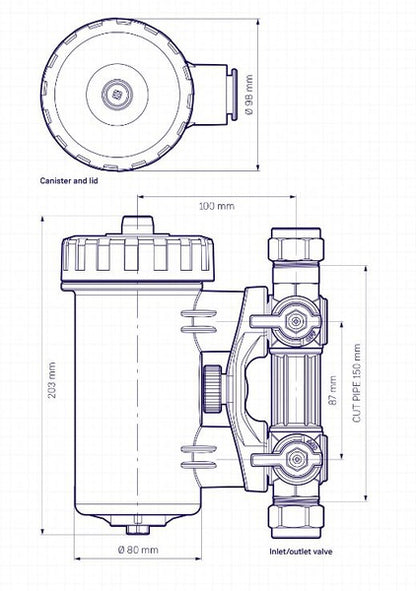

• Size/ Dimensions (Product Installation)

Height: 203mm
• Width at lid: 98mm
• Distance between filter centre & valve centre: 100mm
• Material

Weight: 2kg
• Finish/colour: Black
