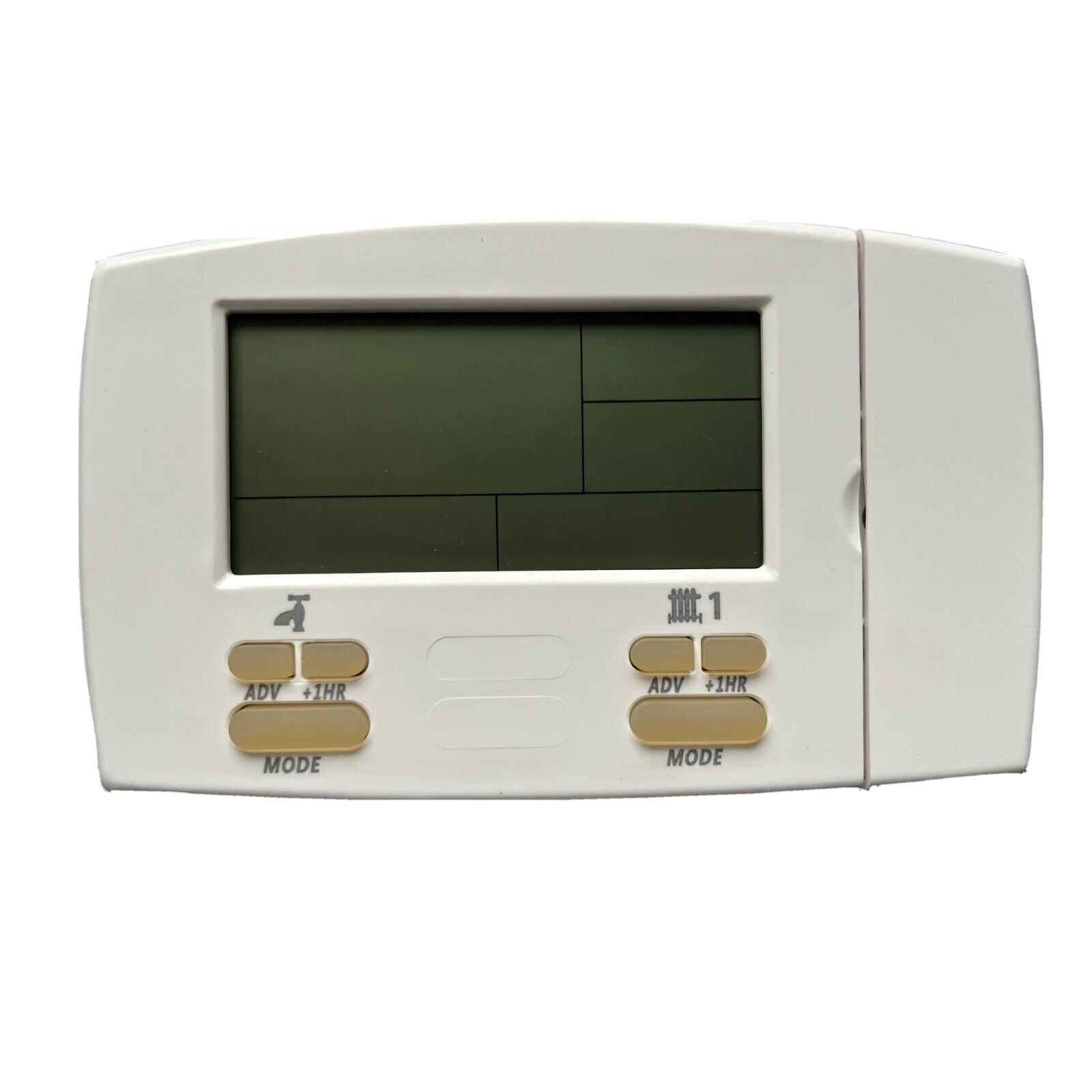

Keyplumb Dual Channel Central Heating Thermostat – K97706

Introducing the Keyplumb Dual Channel Central Heating Thermostat – K97706, a versatile and feature-rich thermostat designed to provide precise control over your central heating system. With its advanced functionalities and user-friendly interface, it offers convenience and flexibility to meet your heating needs.
Product Code: K97706
Dual Channel Output: The thermostat offers dual channel output, allowing you to control two separate heating zones independently for customized comfort and energy efficiency.
Frost Protection Adjustment: Ensure your home stays protected against freezing temperatures with adjustable frost protection settings ranging from 5°C to 20°C.
Holiday Function: The holiday function enables you to set a specific temperature while you're away, ensuring energy savings without compromising on comfort.
+1 Hour Override (Boost): Instantly boost heating for a desired period (1 to 9 hours) with the +1 hour override function, providing additional warmth whenever needed.
Summer/Winter Changeover (DTS): Easily switch between summer and winter modes to optimize heating efficiency based on seasonal changes.
Operating Modes: Choose from different operating modes including Once, Three Periods, and Continuous for flexible programming options tailored to your schedule.
Programmable Options: Configure the thermostat for 5/2 day or 7-day programming to suit your lifestyle and heating requirements.
Blue Backlight: The thermostat features a blue backlight for easy visibility in various lighting conditions, ensuring convenient operation day or night.
Battery Backup: Enjoy peace of mind with a 1-year battery backup that retains programmed settings and time during power outages, ensuring uninterrupted operation.
Room Temperature Display: Monitor the current room temperature at a glance for accurate temperature control and comfort.
Power Supply: The thermostat operates on a 230VAC 50/60 Hz power supply, providing reliable performance and energy-efficient heating control.
Output Contact Rating: With an output contact rating of 3(1) Amp @ 230VAC, the thermostat ensures efficient control of your heating system for optimal comfort.
Enhance your heating experience with the Keyplumb Dual Channel Central Heating Thermostat – K97706, offering dual channel output, frost protection adjustment, holiday function, and other advanced features for precise and convenient temperature control. Experience comfort, energy savings, and flexibility with this versatile thermostat solution.

• Module options: Dual channel output
• Frost protection adjustment between 5C & 20C
• Holiday Function
• +1 hour override (Boost) – 1 to 9 hour boost selectable
• Summer winter changeover (DTS)
• Operating modes: Once, Three periods, Continuous
• Configurable for 5/2 day or 7 day programming
• Blue backlight
• 1 year battery backup retains program and time
• Setting replaceable lithium call CR2032
• Room temperature display
• Power supply 230VAC 50/60 Hz
• Output contact rating @ 230VAC 3(1) Amp

• Model: Keyplumb Dual Channel Central Heating Thermostat - K97706
• Module Options: Dual channel output
• Frost Protection: Adjustable between 5°C and 20°C
• Holiday Function: Yes
• +1 Hour Override (Boost): Selectable from 1 to 9 hours
• Summer/Winter Changeover (DTS): Yes
• Operating Modes: Once, Three periods, Continuous
• Programming Options: Configurable for 5/2 day or 7-day programming
• Display: Blue backlight for easy visibility
• Battery Backup: 1-year battery backup to retain program and time
• Battery Type: User-replaceable lithium cell CR2032
• Room Temperature Display: Yes
• Power Supply: 230VAC 50/60 Hz
• Output Contact Rating: 3(1) Amp at 230VAC
• Included Accessories:

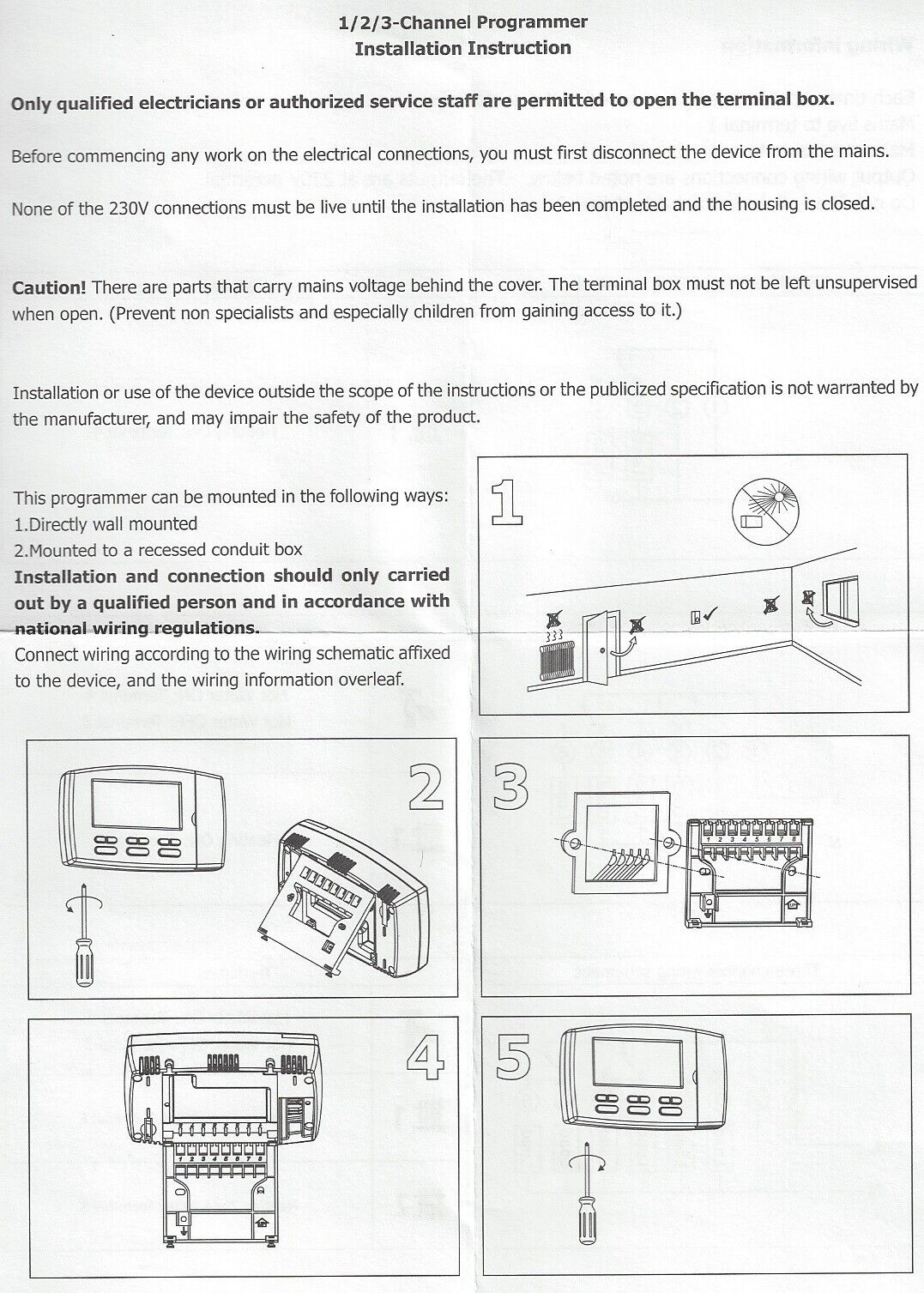

Wiring Diagram Booklet
• Instruction Manual
• Battery
• Screws
