Product Description

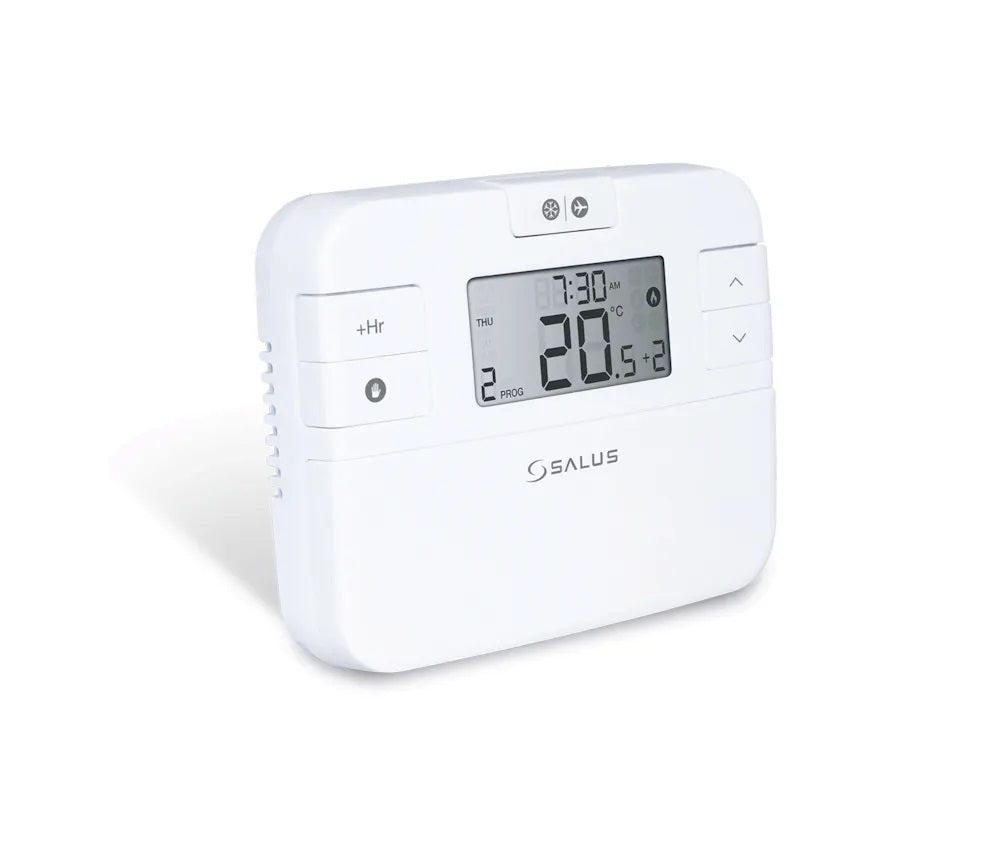

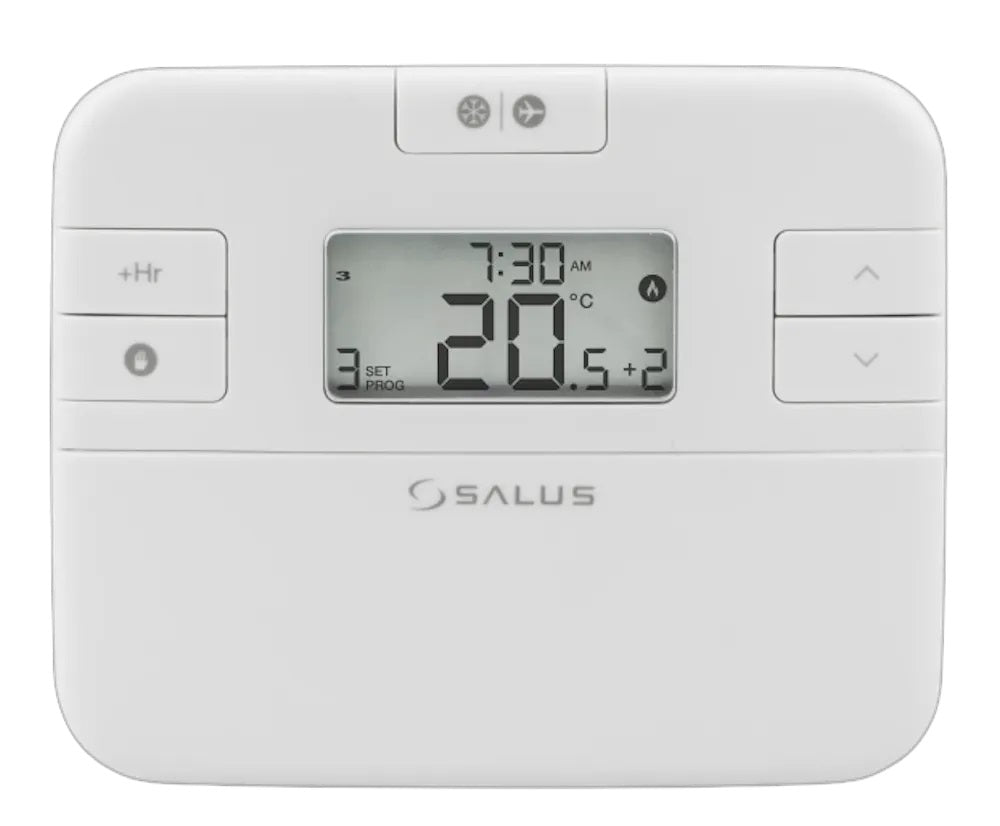

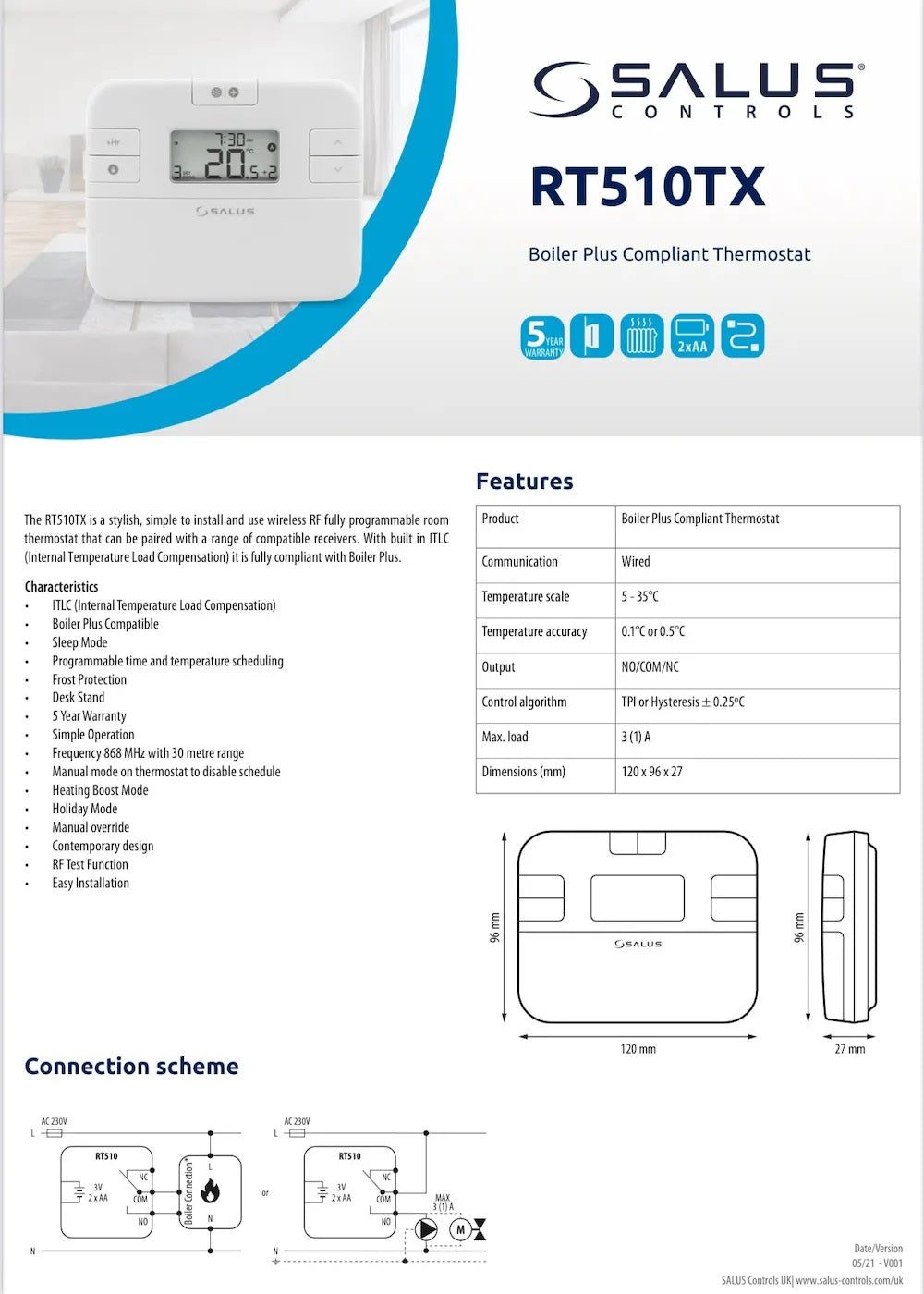

The RT510TX is a stylish, simple to install and use wireless RF fully programmable room thermostat that can be paired with a range of compatible receivers. With built in ITLC
(Internal Temperature Load Compensation) it is fully compliant with Boiler Plus.
Characteristics
• ITLC (Internal Temperature Load Compensation)
• Boiler Plus Compatible
• Sleep Mode
• Programmable time and temperature scheduling
• Frost Protection
• Desk Stand
• 5 Year Warranty
• Simple Operation
• Frequency 868 MHz with 30 metre range
• Manual mode on thermostat to disable schedule
• Heating Boost Mode
• Holiday Mode
• Manual override
• Contemporary design
• RF Test Function
• Easy Installation
Product Features
•Product: Boiler Plus Compliant Thermostat
•Communication: Wired
•Temperature scale: 5 - 35°C
•Temperature accuracy: 0.1°C or 0.5°C
•Output: NO/COM/NC
•Control algorithm: TPI or Hysteresis ± 0.25ºC
•Max. load: 3(1) A

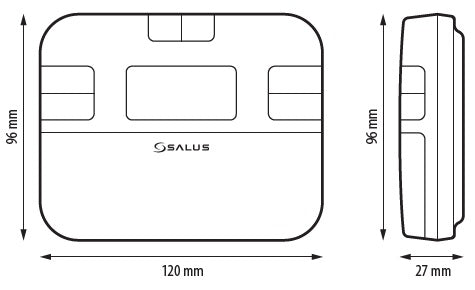

•Dimensions (mm): 120 x 96 x 27
Product Specifications
•Product: Boiler Plus Compliant Thermostat
•Communication: Wired
•Temperature scale: 5 - 35°C
•Temperature accuracy: 0.1°C or 0.5°C
•Output: NO/COM/NC
•Control algorithm: TPI or Hysteresis ± 0.25ºC
•Max. load: 3(1) A
•Dimensions (mm): 120 x 96 x 27
