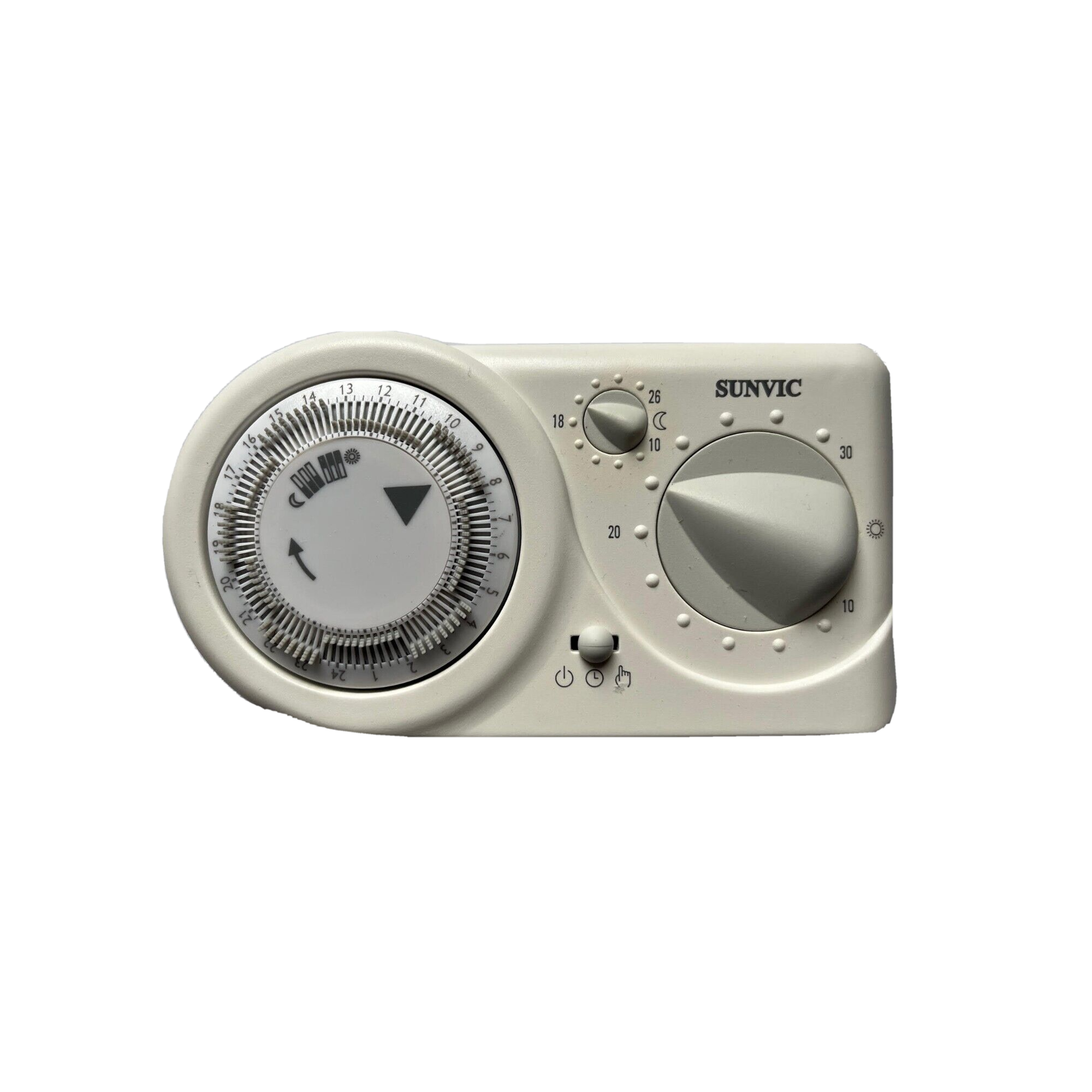

Sunvic TLX 6301 Daily Programmable Room Thermostat

The Sunvic TLX 6301 Daily Programmable Room Thermostat offers a range of features designed for simplicity, flexibility, and efficiency. Here's an overview of its key features:
Simplicity of Use: The thermostat is designed with an intuitive interface for easy operation, ensuring user-friendliness.
Programmable: Users can program their desired temperature levels for different times of the day, with options for Comfort and Economy settings.
Battery-Operated: Powered by 2x 1.5V AA type batteries (not included), the thermostat offers flexibility and easy installation without the need for wiring.
Internal Temperature Sensor: Equipped with an internal temperature sensor, the thermostat accurately monitors and regulates the room temperature.
Three Operating Modes:
Manual Operation: Allows manual control of the room temperature.
Automatic Operation: Automatically adjusts the temperature based on the programmed schedule.
Off with Antifreeze Option: Activates the antifreeze function to prevent freezing in pipes when the temperature falls below 5°C.
Time Switch Setup: Users can set the current hour by turning the outer clock ring to align the arrow with the desired hour.
Programming with Plastic Pins: Plastic pins on the clock ring are used to program temperature settings in 15-minute intervals. Outer position pins activate Comfort mode, while inner position pins activate Economy mode.
Customizable Temperature Settings: Users can set their preferred Comfort and Economy temperature levels, offering flexibility to adapt to their comfort needs.
Installation: The thermostat comes with installation instructions for easy mounting to a wall or junction box. It includes steps for wiring, battery installation, and cover attachment.
Battery-Powered: Operates on 2 AA 1.5V batteries, ensuring independence from the mains power supply.
User-Initiated Time Change: Users manually change the time between British Summer Time (BST) and Greenwich Mean Time (GMT).
Customizable Schedule: Users can configure any desired combination of Comfort and Economy temperature settings by adjusting the clock pins.
Safety Features: Includes an antifreeze function to protect against freezing pipes when in Off mode.

Easy Battery Replacement: Battery replacement is simple with a casing base that accommodates 2 AA batteries.
Secure Installation: The thermostat cover fits securely over the base, ensuring proper alignment and a snug fit.
With these features, the Sunvic TLX 6301 thermostat provides convenient temperature control and energy efficiency for your home.

• Simplicity of Use: The TLX6301 thermostat is designed for user-friendliness, offering an intuitive interface for easy operation.
• Programmable: It allows users to program their desired temperature levels for different times of the day, with options for Comfort and Economy settings.
• Battery-Operated: The thermostat is powered by 2x 1.5V AA type batteries (batteries not included), ensuring flexibility and easy installation without the need for wiring.
• Internal Temperature Sensor: Equipped with an internal temperature sensor, the thermostat can accurately monitor and regulate the room temperature.
• Three Operating Modes: The thermostat features three operating modes:Manual Operation: Allows manual control of the room temperature.
• Automatic Operation: Automatically adjusts the temperature based on the programmed schedule.
• Off with Antifreeze Option: In this mode, the antifreeze function remains active to prevent freezing in the pipes when the temperature falls below 5°C.
• Time Switch Setup: Users can easily set the current hour by turning the outer clock ring to align the arrow with the desired hour.
• Programming with Plastic Pins: The thermostat uses plastic pins on the clock ring to program temperature settings in 15-minute intervals. Pins set to the outer position activate Comfort mode, while pins set to the inner position activate Economy mode
• Customizable Temperature Settings: Users can set their preferred Comfort and Economy temperature levels, offering flexibility to adapt to their comfort needs.
• Automatic Operation: In automatic mode, users can select Comfort and Economy temperature levels, set the clock symbol, and program the plastic pins for desired time intervals.
• Manual Operation: The thermostat can be switched to manual mode, where the user sets the desired Comfort temperature, and the thermostat regulates the room temperature accordingly.
• Off Position: When in the Off position, the thermostat is deactivated, but the antifreeze function remains active to prevent pipe freezing.
• Installation: The thermostat comes with installation instructions, and it can be easily mounted to a wall or junction box. It includes steps for wiring the thermostat, installing batteries, and securely attaching the cover.
• Battery-Powered: The thermostat operates on 2 AA 1.5V batteries, making it independent of the mains power supply.
• User-Initiated Time Change: Users are responsible for manually changing the time between British Summer Time (BST) and Greenwich Mean Time (GMT).
• Customizable Schedule: Users can set any desired combination of Comfort and Economy temperature settings by configuring the clock pins.
• Safety Features: The thermostat includes an antifreeze function to protect against freezing pipes when in Off mode.
• Easy Battery Replacement: Battery replacement is made simple with a casing base that accommodates 2 AA batteries.
• Secure Installation: The thermostat cover is designed to fit securely over the base, ensuring proper alignment and a snug fit.

• Power Supply: 2x AA 1.5V batteries
• Sensor Type: NTC 100k 1%
• Contact rating: 5 A @ 12 to 250V ~ (Volt Free)
• Hysteresis: 0.5C
• Antifreeze: 5C
• Comfort temp range: 10C - 30C
• Economy temp range: 10C - 26C
• Time Switch Step: 15 Minuets
• Battery Life: 12 Months
• Operating temperature: 0C - 40C
• Storage Temperature: -10C - 50C
• Humidity limits: 20% - 80% rH non condensation
